Section Bending Machine

Unleash the potential of our Section Bending Machine, the supreme choice for manufacturers, suppliers, and exporters seeking optimum precision and durability in their operations. With over 10 years of dedicated industry experience, we offer both Double Punch Section Bending Machine and Single Punch Section Bending Machine, each masterfully engineered for unmatched flexibility and efficient handling of varied section profiles. As a prime solution for section bending applications, our machines deliver superior control, fast setup, and minimum material deformation, offering a deal that stands above typical alternatives with supreme reliability. Enhanced with robust construction, easy-to-operate interfaces, and maintenance-friendly design, our Section Bending Machines guarantee high productivity and longevity. Serving the All India market with a limited stock available, these machines are a must-have for businesses demanding the best value and performance. Experience optimum output, prime ease, supreme durability, precision forming, and cost efficiency all in one frame-choose our Section Bending Machine for the ultimate advantage.

Double Punch Section Bending Machine

MOQ : 1 Unit

  • Automation
  • Semi-Automatic
  • Bend Radius
  • Min 150 mm
  • Bending Angle
  • Up to 180
  • Bending Speed
  • 3-7 m/min
  • Bending Strength
  • Up to 16 mm Thickness
  • Capacity
  • Up to 100 mm Section Width
  • Color
  • Blue with Yellow Accents
  • Condition
  • NEW
  • Dimension (L*W*H)
  • 1700 mm x 1000 mm x 1400 mm
  • Machine Type
  • Section Bending Machine
  • Motor Speed
  • 1440 rpm
  • Output
  • Precision Curved Sections
  • Phase
  • Three Phase
  • Place of Origin
  • India
  • Power
  • 7.5 kW
  • Product Type
  • Double Punch Section Bending Machine
  • Production Capacity
  • Variable, up to 4 Ton/Day
  • Raw Material
  • Mild Steel
  • Usage
  • Bending Metal Sections, Tubes, and Profiles
  • Voltage
  • 380 V
  • Weight
  • 1,250 kg

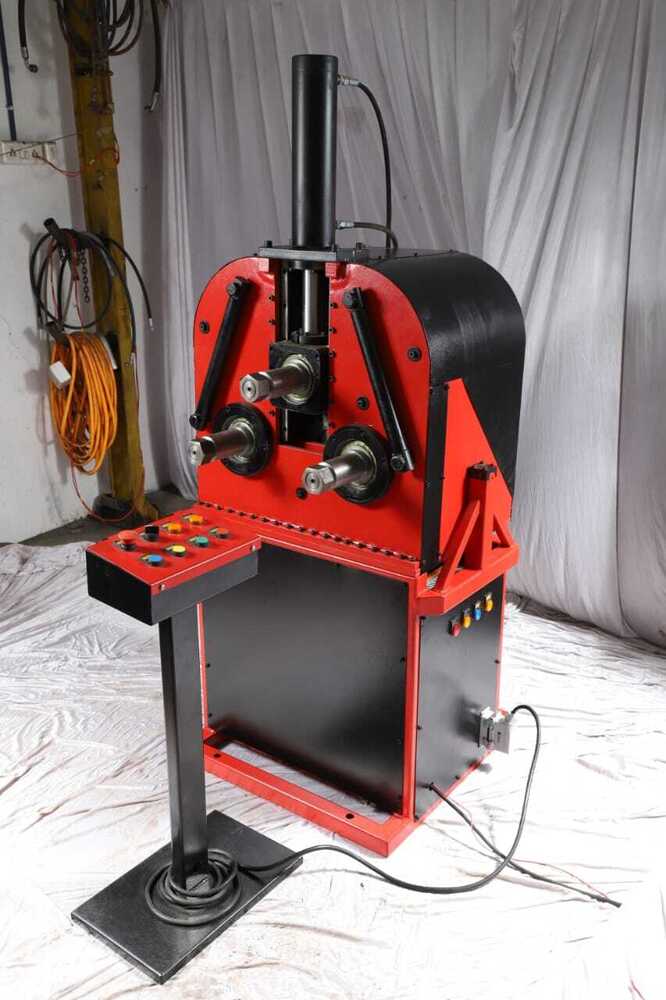

Single Punch Section Bending Machine

MOQ : 1 Unit

  • Automation
  • Semi-Automatic
  • Bend Radius
  • Minimum 120 mm (depending on die)
  • Bending Angle
  • 0-180 adjustable
  • Bending Speed
  • 4~8 m/min (depends on materials)
  • Bending Strength
  • Up to 250 MPa (varies by material)
  • Capacity
  • Max 3-inch OD Round Pipe / Equivalent Section
  • Color
  • Blue & Yellow / As Shown
  • Condition
  • NEW
  • Dimension (L*W*H)
  • 1350 mm x 800 mm x 1200 mm
  • Machine Type
  • Section Bending Machine
  • Motor Speed
  • 1440 rpm
  • Output
  • Bends various section types
  • Phase
  • Three Phase
  • Place of Origin
  • India
  • Power
  • 2.2 kW (as per specification variants)
  • Product Type
  • Single Punch Section Bending Machine
  • Production Capacity
  • Up to 250 sections/day (material dependent)
  • Raw Material
  • Mild Steel / Stainless Steel
  • Usage
  • Pipe, Angle, Channel, and Profile Bending
  • Voltage
  • 380V
  • Weight
  • Approx. 520 kg
